Why Ethernet/IP Matters in Modern Industrial Automation

Ethernet/IP (Ethernet Industrial Protocol) has become one of the most widely adopted industrial communication standards globally. Built on standard Ethernet and the Common Industrial Protocol (CIP), it allows manufacturers to unify real-time control, diagnostics, configuration, and enterprise data exchange on a single network.

As factories evolve toward smart manufacturing and IIoT-driven operations, Ethernet/IP plays a crucial role by:

  • Bridging shop-floor devices with MES, SCADA, and cloud platforms
  • Supporting both time-critical I/O data and non-time-critical configuration data
  • Leveraging standard Ethernet hardware for cost-effective scalability

RAPIDSEA’s Ethernet/IP stack is designed to help OEMs and automation developers adopt Ethernet/IP faster, with fewer risks and lower integration effort.

What Is RAPIDSEA Ethernet/IP Protocol Stack?

The RAPIDSEA Ethernet/IP Protocol Stack is a production-ready, embedded software implementation of the ODVA Ethernet/IP specification. It enables industrial devices to communicate reliably using explicit and implicit messaging, while remaining fully interoperable with multi-vendor Ethernet/IP ecosystems.

Whether you are building PLCs, remote I/O modules, gateways, drives, or smart sensors, RAPIDSEA provides a robust Ethernet/IP foundation.

Key Characteristics of RAPIDSEA Ethernet/IP Stack

Standards Compliant

Standards-Compliant

Developed in MISRA-C compliant, ANSI C source code

Platform Portability

Platform Portability

Portable across MCUs, MPUs, RTOS, and bare-metal environments

Cost-Effective

Cost-Effective

Stack is delivered under a one-time, royalty-free licensing model

Future-Ready

Future-Ready

Designed for fast certification readiness and long-term maintenance

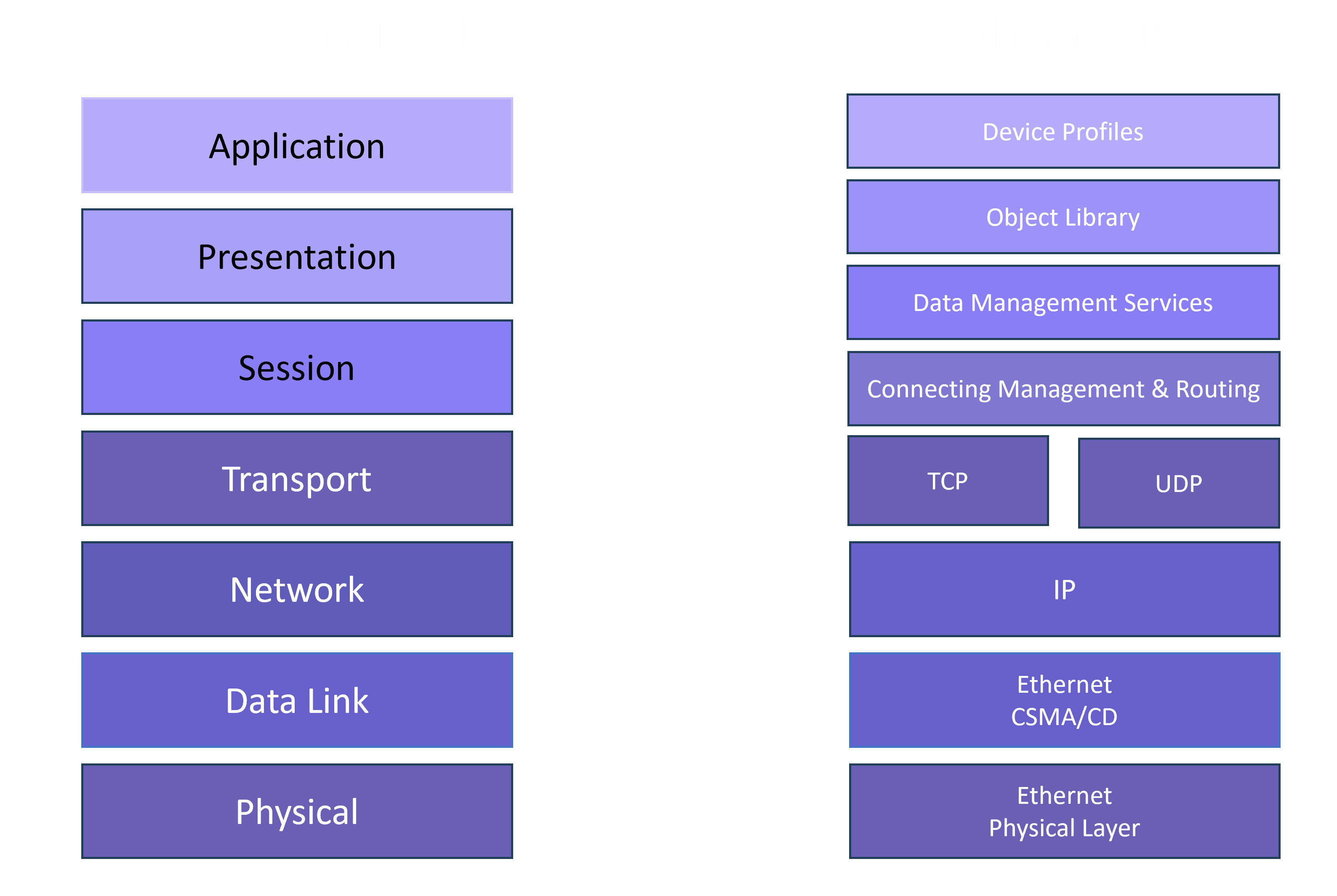

Ethernet/IP OSI Layer Mapping

Understanding the Architecture

Our stack is designed with a modular approach that mirrors the OSI framework, ensuring seamless interoperability:

  • Physical & Data Link (Layers 1-2): Fully compliant with IEEE 802.3, supporting various media from copper to optical fiber.
  • Network Layer (Layer 3): Utilizes standard IP addressing for universal identification across complex network topologies.
  • Transport Layer (Layer 4): Employs TCP for reliable, connection-oriented Explicit Messaging and UDP for high-speed, connectionless Implicit (I/O) Messaging.
  • Application Layer (Layers 5-7): This is where the CIP (Common Industrial Protocol) shines, organizing data into an object-oriented model for unified device profiles and services.

This transport-agnostic approach ensures future-proof integration as automotive networks evolve.

Core Features of RAPIDSEA Ethernet/IP Stack

Full CIP Object Model Support icon

Full CIP Object Model Support

Implements standardized CIP objects and services, enabling seamless interoperability across devices from different vendors.

Explicit & Implicit Messaging icon

Explicit & Implicit Messaging

Supports both TCP-based explicit messaging and UDP-based cyclic I/O messaging for real-time control applications.

High-Precision Time Synchronization icon

High-Precision Time Synchronization

Optional support for CIP Sync (IEEE 1588 PTP) for sub-microsecond synchronization across distributed devices.

Flexible Device Roles icon

Flexible Device Roles

Enables implementation of I/O Adapters, I/O Scanners, Explicit Message Clients and Servers.

Robust Encapsulation Handling icon

Robust Encapsulation Handling

Handles Ethernet/IP encapsulation, session management, segmentation, and de-segmentation efficiently.

Network Services Integration icon

Network Services Integration

Supports common TCP/IP services such as DHCP, embedded web server interfaces, SNMP, and diagnostics.

Advanced Capabilities

RAPIDSEA’s Ethernet/IP stack goes beyond baseline protocol compliance by enabling advanced capabilities often missing in off-the-shelf implementations:

Modular architecture for easy feature extension.

Hooks for cybersecurity layers (TLS gateways, secure boot integration).

Built-in diagnostics for network health and performance monitoring.

Ready integration with edge analytics and IIoT gateways.

Scalable memory footprint for both constrained and high-end devices.

Real-World Use Cases: Ethernet/IP in Action

Explore how RAPIDSEA's Ethernet/IP stack powers transformative applications in industrial automation, from predictive maintenance to compliant processes, delivering measurable gains in efficiency and reliability across sectors.

  • Smart Manufacturing: Connect PLCs, HMIs, and sensors for predictive downtime alerts, boosting uptime by 25%.
  • Robotics & Motion Control: Real-time I/O for collaborative arms, integrating with edge AI for adaptive paths.
  • Process Automation: Seamless data flow in oil refineries, with DLR for fault-tolerant rings.
  • Building Management: Link HVAC and lighting via wireless Ethernet/IP for energy optimization.
  • Pharma Compliance: Secure, traceable device communication meeting FDA standards.

From legacy upgrades to greenfield deployments, our stack adapts effortlessly.

The Future of Connected Industry Starts Here

RAPIDSEA's Ethernet/IP Protocol Stack isn't just code—it's your gateway to resilient, efficient automation. With features like dual messaging, scalable objects, and unique advantages in licensing and compliance, it's poised to dominate "industrial Ethernet/IP solutions" searches.

Explore, integrate, innovate today!

Get startedBook a Demo
Future of Connected Industry

RAPIDSEA Ethernet/IP Stack Package

Explore our comprehensive library of documents

Post-Purchase Document

Post-Purchase Document icon

  • QSG, Gtests
  • MISRA Compliance
  • HDD, LDD

Contact us

Gated Access Resources

Gated Access Resources icon

  • Test report
  • Pricing
  • Evaluation Package

Request Access

Technical Reports

Technical Reports icon

  • Resource Utilization
  • Tracability Matrix
  • Evaluation Version Binary (Windows, Linux)

Request Download Links

FAQs

Ethernet/IP is used to enable real-time control, monitoring, and data exchange between industrial devices over standard Ethernet. It connects PLCs, sensors, HMIs, robots, and gateways using a single, interoperable industrial Ethernet network.

Looking to deploy Ethernet/IP in your industrial system?

RAPIDSEA helps you design, integrate, and deploy reliable Ethernet/IP communication tailored to your automation architecture and real-time performance requirements.
